Adding status information to the response

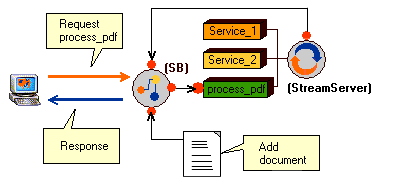

This example is an addition to Sending a response to a client. In this example, the server is also configured to add status information to the response sent to the client.

The status message is created using a Status Messenger input connector, a MessageIN Event, and a PageOUT Process. See the Status Messenger documentation for information on how to configure status messages.

The status message is added to the response using a Service Channel Submit (HTTP) output connector.

Service Channel Submit (HTTP) output connector settings
Specify: • The interface between the “Add Document” channel and the Service Broker. • Which service and version (response) to add the document to. • The client connector that will receive the response.
Service Broker Host	134.123.6.87
Port	1717
Service Description	process_pdf
Version	2
Command	AddDocument
Response Service Channel	service_response
