Examples

Forwarding output to a printer

•	The Service Broker runs on the address 134.123.6.87:1717.

•	A StreamServer has published the service print_doc version 2. It uses port 1616 to communicate with the Service Broker.

•	Another StreamServer invokes print_doc version 2 via the Service Broker.

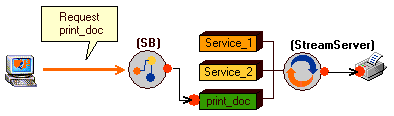

The client requests print_doc version 2. The Service Broker forwards the document to the server. The server processes the document and sends the output to a printer.

Service Broker configuration



Control Center GUI
IPport	1717

Server configuration



Configure Platform dialog – Service Broker tab
Enable publishing of services, and specify the interface between the service providing server and the Service Broker.
Service Broker host	134.123.6.87
Service Broker port	1717
Enable services	Select
Port	1616



Service Channel (HTTP) input connector settings
Specify the name and version of the service.
Service description	print_doc
Version	2

Client configuration



Service Channel Submit (HTTP) output connector settings
Specify: • The interface between the client output channel (request) and the Service Broker. • Which service and version to invoke. • That no response is required.
Service Broker Host	134.123.6.87
Port	1717
Service Description	print_doc
Version	2
Command	SendDocument
