Adding dynamic data to chart data
For the data used in a chart you can:
•
Make the values of chart categories dynamic.
•
Make line properties of line chart categories dynamic.
•
Make the number of categories dynamic.
To add dynamic data to chart categories
1
Select the chart.
2
In the Properties panel Chart category, select Data and click the browse button. The Chart Data panel opens.
3
Drag fields or variables from the Message panel to the Value fields of each Category, or to the value field of a repeated category. See To enable a dynamic number of categories.
To add dynamic data to line properties
1
Select the chart.
2
In the Properties panel Chart category, select Data and click the browse button. The Chart Data panel opens.
3
Select a chart data category.
4
In the Properties panel Chart data item category, set modifications on Line thickness, Line dash style and/or Line color.
To enable a dynamic number of categories
1
Select the chart.
2
In the Properties panel Chart category, select Data and click the browse button.
3
In the Chart Data table, delete all category rows except one.
4
Select the Category cell.
5
Click Set modification.
6
In the Data Selection dialog, select a field in the block that is repeated for each item in your input data, and click OK.
7
Select the Value cell.
8
Click Set modification.
9
In the Data Selection dialog, select the field in the block with the value used for the chart category value, and click OK.
10
Select the Data label cell.
11
Click Set modification.
12
In the Data Selection dialog, select the field in the block with the value used for the data label value, (normally the same as the Value field), and click OK.
13
Select the Legend label cell.
14
Click Set modification.
15
In the Data Selection dialog, select the field in the block with the value used for the legend label value, normally an item name, and click OK.
16
Select the Color cell.
17
Click Set modification.
18
In the Data Selection dialog, select the field in the block whose value is used for the color value, and click OK.
*

Instead of selecting a field and clicking Set modification, you can drag the field in a block to the corresponding cell in the Chart Data table.
Example 53
Chart with dynamic number of categories
The Document Designer designs a pie chart and specifies that it will contain a dynamic number of categories.
The message contains a StreamIN Event with a block and the following fields:
•
ItemName
•
ItemQuantity
•
ItemColor
The Document Developer opens the Chart Data panel for the chart and:
•
Drags the ItemName field from the Message panel to the Category cell in the Chart Data table.
•
Drags the ItemQuantity field from the Message panel to the Value cell in the Chart Data table.
•
Drags the ItemQuantity field from the Message panel to the Data label cell in the Chart Data table.
•
Drags the ItemName field from the Message panel to the Legend cell in the Chart Data table.
•
Drags the ItemColorfield from the Message panel to the Fill color cell in the Chart Data table.
The Event is a StreamIN configuration where the input format for the ItemQuantity field is k=, d=
This means that, for example, 1,000.00 is interpreted as 1000 and not 1.00.
The input file contains three item records:
ITEM;Nots;1,250.00;RGB(255,0,0)
ITEM;Bolts;2000;RGB(0,255,0)
ITEM;Screws;1000;RGB(0,0,255)
With this configuration, the block is repeated three times and there are three categories in the chart with the colors red, blue, and green.
Click to enlarge

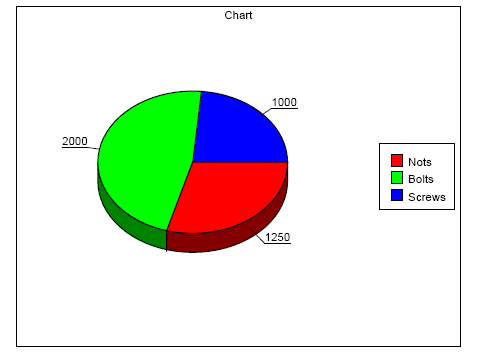

Figure 53
A pie chart with a dynamic number of categories
