Vertical fold marks settings

Fold marks display where the border between rows in a signature is located, and they indicate where the sheet is supposed to be folded.

In the Fold marks tables, you can double-click a cell or click F2 when a row is selected to start editing.

Vertical fold marks are printed outside the top and bottom edges of the signature, between the columns that you specify.

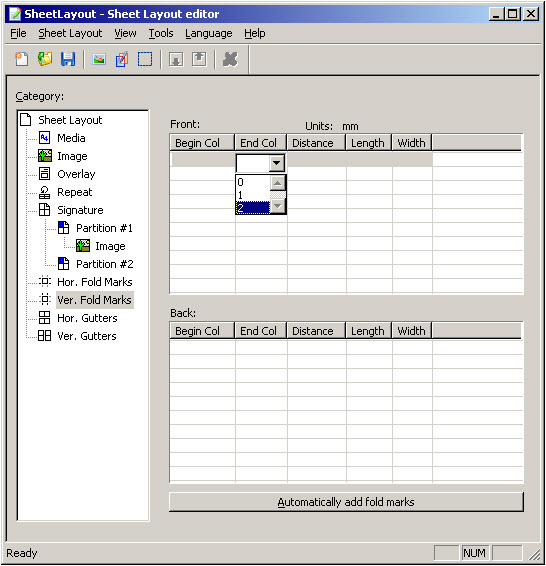

Figure 11

The Vertical Fold Marks category

Settings	Description
Begin col	Specifies the column in the signature to the left of which the first fold mark is printed. Enter 0 to start at the top.
End col	Specifies the column in the signature to the right of which the last fold mark is printed.
Distance	The distance between the signature and the closest edge of the fold mark.
Length	The length of the fold mark.
Width	The width of the fold mark.
Automatically add fold marks	Click to automatically add vertical fold marks to every place where it is possible, that is on the vertical limit between columns in the signatures, as well as to the left of the first column and to the right of the last column.
