Horizontal fold marks settings

Fold marks display where the border between rows in a signature is located, and they indicate where the sheet is supposed to be folded.

In the Fold marks tables, you can double-click a cell or click F2 when a row is selected to start editing.

Horizontal fold marks are printed outside the left and right edges of the signature, between the rows that you specify.

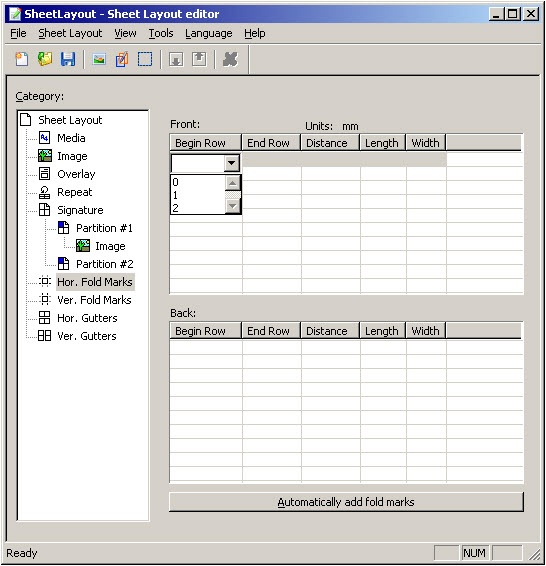

Figure 10

The Horizontal Fold Marks category

Settings	Description
Begin row	Specifies the row in the signature above which the first fold mark is printed. Enter 0 to start at the top.
End row	Specifies the row in the signature under which the last fold mark is printed.
Distance	The distance between the signature and the closest edge of the mark.
Length	The length of the fold mark.
Width	The width of the fold mark.
Automatically add fold marks	Click to automatically add horizontal fold marks to every place where it is possible, that is on the horizontal limit between rows in the signatures, as well as above the first row and under the last row.
