Image settings – partition level

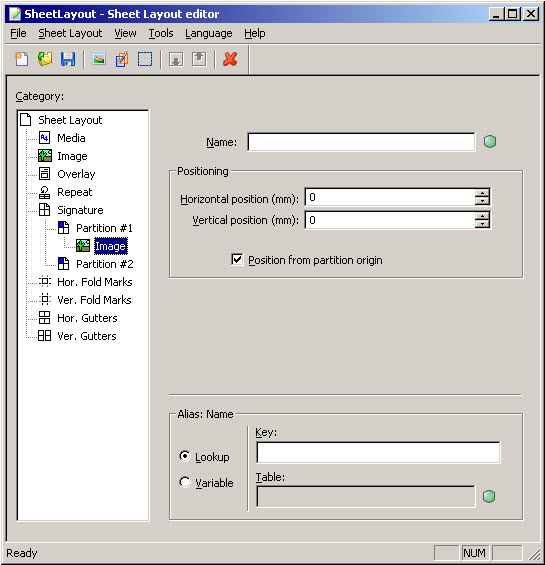

Figure 5

The Image category at partition level

Settings	Description
Name	The image file name as specified in the resource set. You can use a variable for the image name. For example, you can use customized images depending on the customer ID.
Horizontal position (mm)	The horizontal position on the partition or sheet. Left is 0.
Vertical position (mm)	The vertical position on the partition or sheet. Top is 0.
Position from partition origin	The horizontal and vertical positions are relative to the partition origin (top left corner of the partition), instead of the sheet origin.
