Update all ADEP Document Services Repository resources dialog box

This dialog box displays if a resource has been changed and needs to be updated.

When the dialog box opens, the resources that have an older version in the Design Center resource set than in the repository are pre-selected.

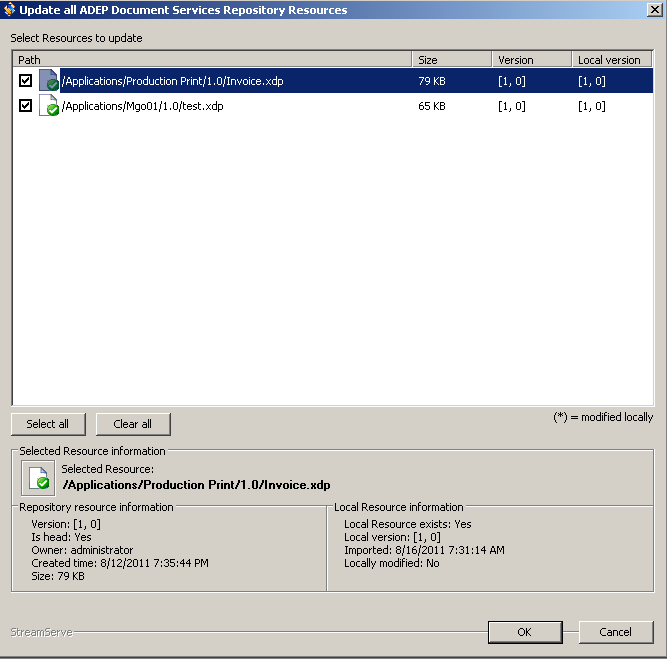

Figure 13

The Update all ADEP Document Services Repository Resources dialog box

See Icons used when accessing Document Services Repository for information on the document icons used in this dialog box.

Setting	Description
Select Resources to update	Path – Path and file name of the resource. Size – Resource file size. Version – Version of the resource in the repository. Local version – Version of the resource stored in the Design Center resource set.
Select all	Select all objects in the list.
Clear all	Clear all check-boxes (i.e. select none of the objects in the list).
Selected Resource information	Information about the selected (highlighted) resource.
Repository resource information	Display information about resource in the repository: Version – Version of the selected resource. Is head – Yes/No Yes if current version is the most recent one. Owner – Creator user name. Created time – Date and time the selected resource version was created. Size – Resource file size. If the resource has been removed from the repository, information will be displayed about this.
Local Resource information	Local Resource exists – Yes/No. Yes if the resource has been imported to the Design Center resource set. Local version – The version of the resource stored in the Design Center resource set. Imported – Date and time the resource was imported and stored in the Design Center resource set. Locally modified – Yes/No. Yes if the resource has been changed locally.
