RFID inlays

Radio Frequency Identification (RFID) tags are used for automatic identification of individual items. You can mark the positions of RFID inlay chips and configure the inlays in the PageOUT tool.

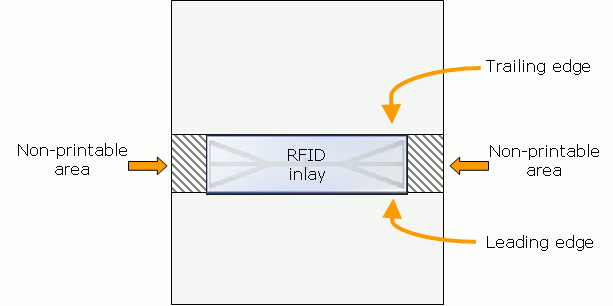

Inserted RFID inlays are visualized in the PageOUT tool to assist during label design. They are not printed in the output document. The reason why inlays are visualized is that objects placed on the leading and trailing edges of the inlay, or at the sides of the inlay, can not be scanned and are not printed, see figure below.

Figure 1

Label with RFID inlay

To mark the position of an RFID inlay

1	In the Process view, select the top node or the appropriate block

2	Select Insert > RFID, alternatively click the Insert RFID icon.

3	On the sheet, draw a rectangle to mark the position of the RFID inlay.

To configure an RFID inlay

In the Process view, right-click the RFID object and select the appropriate shortcut menu command.

See also

•	RFID Properties dialog box.

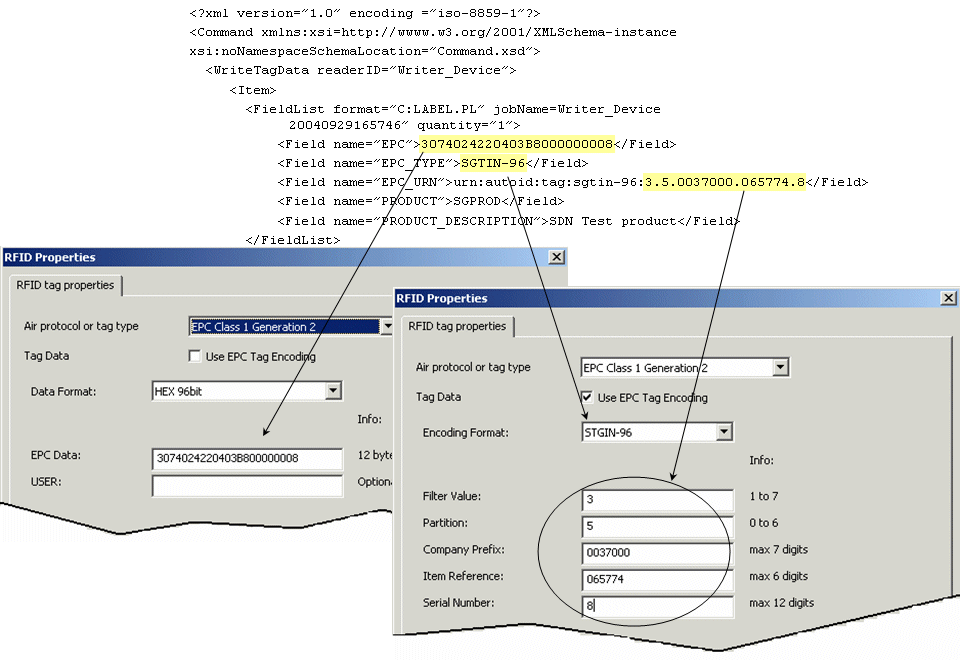

The figure below shows a sample print command file and how data is retrieved from the values entered as RFID properties in the PageOUT tool.

Figure 2

Sample print command file
