Geometrical properties of graphics

You modify the geometrical properties (position, size, line thickness, etc.) of a graphic object in the object setup dialog box that opens when you double-click the object.

Units

In the dialog box, the geometrical properties are specified using default units, see Specifying units.

Note:

You can specify measurements in other units than the default ones. In that case, the Overlay Editor recalculates the specified values, and presents the properties using the default units.

Displacement

The object is either displaced from the origin of the grid, or from the upper-left corner of the page, see Specifying general Overlay Editor settings.

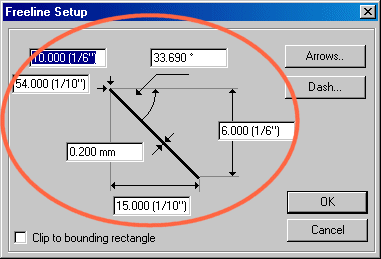

Figure 1

Geometrical properties of a freeline
