Storing documents in a Document Broker repository

You need the following Design Center components to store documents in a Document Broker repository:

•	Document Broker Plus output connector

•	Document type resource containing metadata

Overview

StreamServer processes and stores documents as follows:

1	Input is received via an input connector.

2	StreamServer processes the input data.

3	Metadata is added to the documents.

4	StreamServer stores the documents in the Document Broker repository.

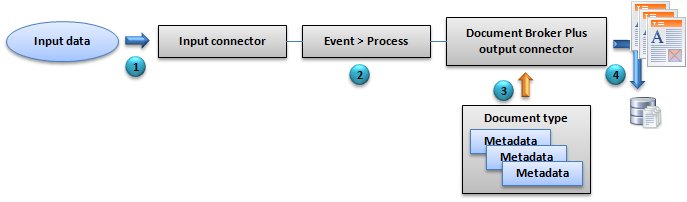

Figure 5

Storing documents in a Document Broker repository

Document Plus output connector

You must use the Document Broker Plus output connector to store documents in a Document Broker repository. You must select the SDR for Relational Database driver and create a document trigger in order to store the output as documents in the Document Broker repository.

Compression of the documents (enabled by default) reduces the size of the Document Broker repository. For smaller jobs it can be more efficient not to compress documents. You specify whether to enable compression in the runtime output connector settings (Device Driver Settings tab at Job Begin).

Document type resource

You must create a document type resource and connect it to the Document Broker Plus output connector. The document type must include all metadata to add to the stored documents. The metadata is used as search criteria in the Document Broker repository, and to sort and bundle documents collected from the Document Broker repository.
