Multi-channel delivery example

In this example, the Process delivers the same output via three output connectors (Out_1, Out_2 and Out_3).

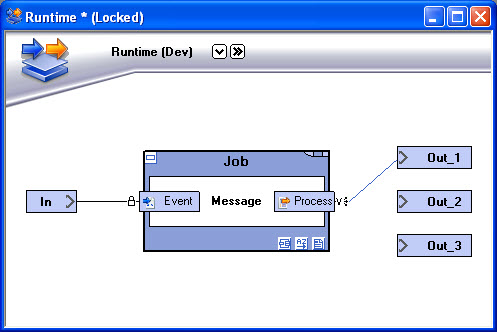

Figure 59

One Process connected to three connectors

The script

The following script is added before Process:

$channel[0]="Out_1";

$channel[1]="Out_2";

$channel[2]="Out_3";

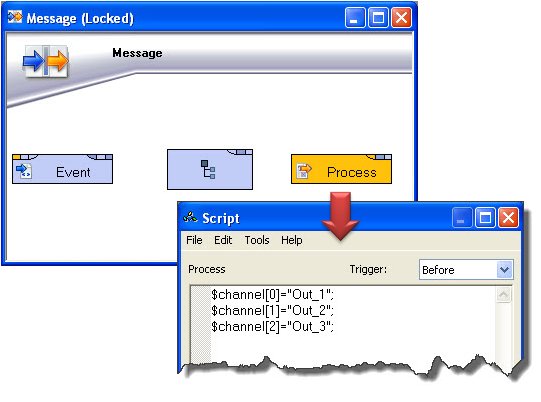

Figure 60

Before Process script

Connector selection

A script alias is used to select the three connectors. The selection variable is the array variable $channel[*].

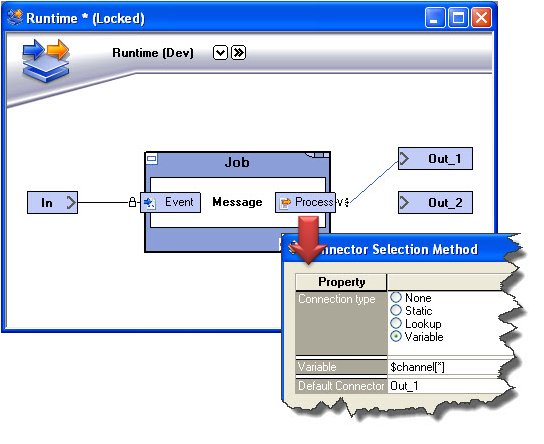

Figure 61

Connector selection using an array variable
