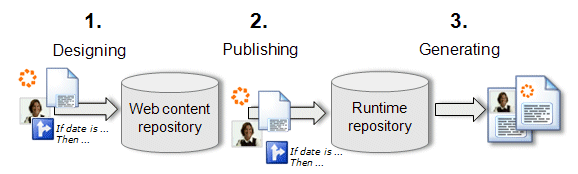

Document definitions, resources etc. are stored in a web content repository during the document design phase. This section describes how the web content repository is used together with the runtime repository and the enterprise repository.
|
1
|
When the Design Center Project is deployed, a master Composition Center template is stored in the enterprise repository.
|
|
2
|
When the web content repository is synchronized with the enterprise repository, any new or modified templates are stored in the web content repository. The synchronization is triggered either by a user logging in to Composition Center or by a Task Scheduler application.
|
|
3
|
When the Composition Center user creates a document definition, the template is retrieved from the web content repository.
 |
|
1
|
During the design phase in Composition Center, the web content repository is used for storing document definitions and resources.
|
|
2
|
When document definitions are published, they are copied to the runtime repository together with its resources.
|
|
3
|
The StreamServer applications use the document definitions and resources stored in the runtime repository to generate documents.
|
For information about how to create a web content repository and how to schedule the template synchronization, see StreamStudio Composition Center configurations in the Control Center documentation.
